article
AOS 124
description

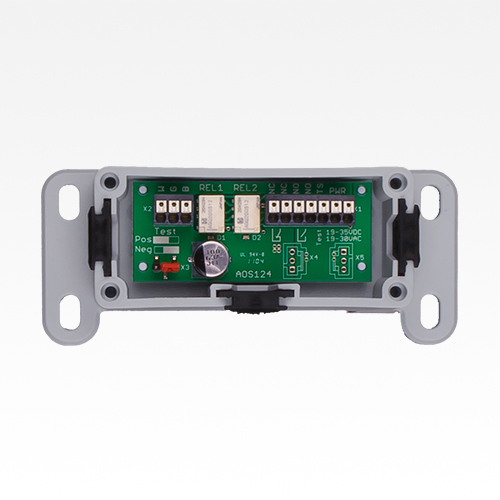

The compact safety processing unit AOS 124 is installed directly on the door curtain. It can process an optoelectronic safety edge with an OSE-signal and is available as a potential-free contact for the control.
• one OSE-input
• a safety circuit
• relay-output and test-input
• for mounting on the door curtain
• LED-indicators
• one OSE-input
• a safety circuit
• relay-output and test-input
• for mounting on the door curtain
• LED-indicators
data
| Technical data | |
|---|---|
| operating voltage | 19...35 VDC or 19...30 VAC |
| input | 1x OSE-signal |
| output | relay/test-input |
| display | yellow LEDs |
| safety | Cat. 2, ISO 13849-1 |
| index of protection | IP65 |
documents
accessories (1)
LOW-POWER-SIGNAL
Optoelectronics safety edges
Set consists of:
Transmitter 1m fixed cable with Molex plug, receiver 10.5m fixed cable with Molex plug.product is being shipped within 1-2 working days
